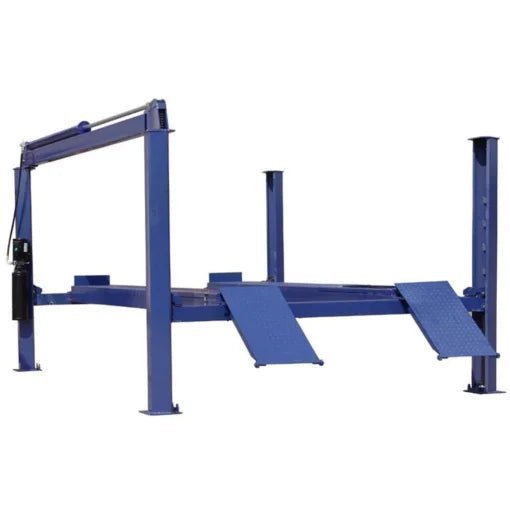

TUXEDO FP14K 14,000 LB CHAIN DRIVEN 4 POST LIFT
$1,349.10
In stock — ships in 1–3 business days
Need help choosing?
+1 917-695-3597
Talk to a Pro Equipment specialist before you buy.
Freight delivery
Typically 4–10 business days (1–3 processing + 3–7 transit). Curbside / freight delivery for heavy equipment.
-
Free freight (contiguous US)
Specialized heavy delivery · typically 3–7 days in transit
-
Secure checkout
Encrypted payments via Shopify
-
USA-based support
Mon–Fri, 8am–6pm EST · contact@proequipment.shop
Features & Benefits
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Diamond Plated Runways
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- 5 yr Structural – 2 yr Hydraulic Warranty
Atlas® ATTD-414 Specifications
| Capacity | 14,000 lb. |
| Lifting Height | 80″ (6′ 8″) |
| Overall Width Of Columns (Without Motor) | 130 7/8″ (10′ 10 7/8″) |
| Overall Width Of Columns (With Motor) | 138 7/8″ (11′ 6 7/8″) |
| Overall Length With Approach Ramp | 255″ (21′ 3″) |
| Length Between Columns | 197 1/4″ (16′ 5 1/4″) |
| Runway Length | 208 5/8″ (17′ 4 5/8″) |
| Runway Width | 20″ |
| Thickness Of Runway | 8 3/4″ |
| Width Between Runways | 46 7/8″ (w/ Rail 44 3/8″) |
| Outside Runway To Outside Runway | 86 7/8″ (7′ 2 7/8″) |
| 71 1/4″ (5′ 11 1/4″) | |
| 116″ (9′ 8″) | |
| Height Of Columns | 91 1/8″ (7′ 7 1/8″) |
| Maximum Wheel Base | 197″ (16′ 5″) |
| Drive Thru | 102 1/8″ (8′ 6 1/8″) |
| Air Requirement | 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement | 220 volt single (1) phase.A 30 amp breaker is recommended |
| Oil Requirement | 3-5 GallonsAW32/AW46 (NOT INCLUDED) |
Shipping: Heavy items ship via freight. Most orders process in 1–3 business days and arrive in 3–7 days in transit (about 4–10 business days total).
Returns: See our Return & Refund Policy for eligibility, RMA requirements, and timelines. Contact contact@proequipment.shop or call +1 917-695-3597 to start a return.
